The Zundapp KS601 - Sectional View of Carburetor
|

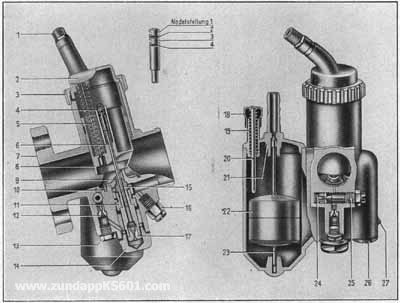

Sectional View of Zundapp KS601 Bing Type 119 Carburetor
Larger image of the
Zundapp KS601 carburetor.
Sectional View of Zündapp KS 601 Carburetor
|
1
2
3
4
5
6
7
8
9
|
Cable Adjusting Screw
Cover Plate
Cover Plate Union Piece
Clamp
Gas Slide Spring
Jet Needle
Carberettor Body
Gas Slide
Mixing Chamber Insert
|
10
11
12
13
14
15
16
17
18
|
Compensator Bore
Thread
Idler Jet
Screw Plug
End Screw
Needle Jet
Protector Screw
Main Jet
Tickler
|
19
20
21
22
23
24
25
26
27
|
Tickler Spring
Split Cotter Pin
Float Chamber Cover
Float
Float Spindle
Idler Air Jet
Air Adjusting Screw
Screw Plug
Idler Adjusting Screw
|
|
