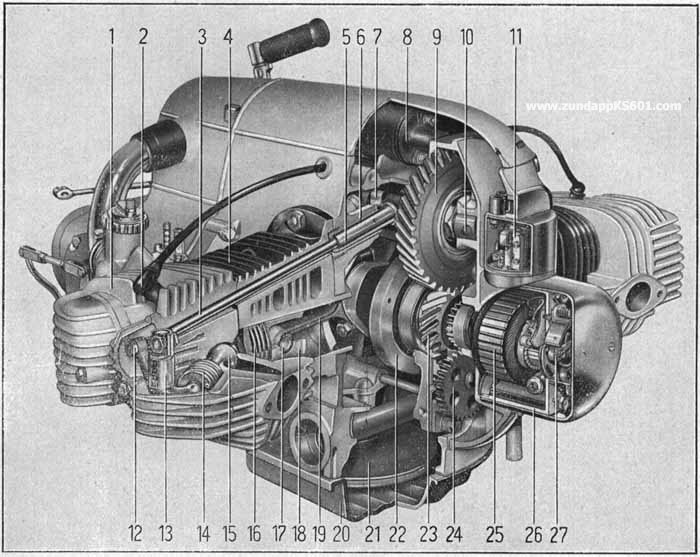

The Zundapp KS601 - Sectional View of Engine
|
1
2
3
4
|
Right-hand Cylinder Head
Sparkplug with Cap
Pushrod
Right-hand Cylinder
|
5
6
7
8
|
Mushroom Tappet
Tappet Guide
Camshaft
Ignition Coil
|
9
10
11
|
Camshaft Gear
Breather
Voltage regulator with
Reserve Current Cutout
|
Sectional View of Zundapp KS601 Engine
Sectional View of Zündapp KS 601 Engine
|
12
13
14
15
16
|
Valve Adjusting Screw
Rocker Arm
Valve Spring
Valve
Compression Rings
|
17
18
19
20
21
22
|
Piston Pin
Piston
Connecting Rod
Oil Sump
Oil Filter
Crankshaft
|
23
24
25
26
27
|
Crankshaft Gear
Oil Pump
Armature
Generator
Contact Breaker
|
|
