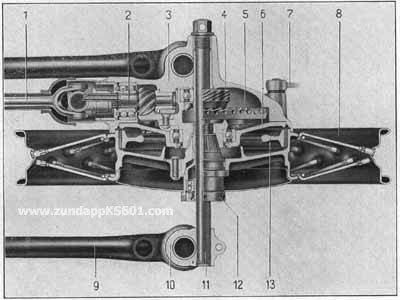

The Zundapp KS601 - Sectional View of Final Drive Sectional View of Zundapp KS601 Final Drive Larger image of Zundapp KS601final drive. 1 2 3 4 Universal Joint Shaft Driver Bevel Gear Final Drive Unit Casting Driving Gear for Speedometer 5 6 7 8 9 Spiral Drive Gear Casing Cover Brake Lever Bar Rear Wheel Frame 10 11 12 13 Spring Tube Rear Wheel Axle Clamping Bush Brake Shoes Note: The tapered spline shown above was used in 1951 and '52.          Conventional straight spline was used thereafter. Last updated 02-12-18 Email:  mechanique at wmol dot com Zundapp KS601 drive shaft, U-joints, and pinions.
