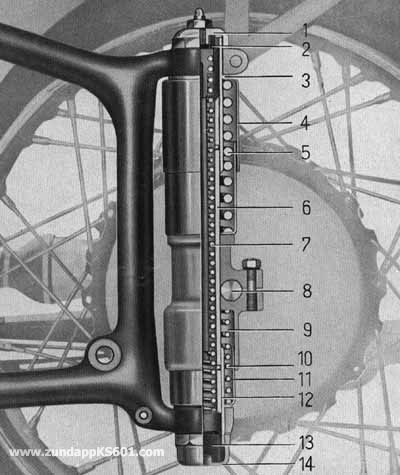

The Zundapp KS601 - Sectional View of Plunger Rear Suspension A sectional view of the Zündapp KS 601 plunger suspension. Sectional View of Zundapp KS601 Plunger Rear Suspension A sectional view of the plunger suspension on the Zündapp KS 601. 1 2 3 4 5 Upper Lock Nut Rubber Ring Sliding Bush Protector Cap Main Spring 6 7 8 9 Guide Tube Auxiliary Spring* Rear Wheel Axle Casing 10 11 12 13 14 Counter-action Spring Protector Cap Lower Sliding Bush Rubber Bumper* Lower Lock Nut * No longer built on new models. Last updated 03-03-16 Email:  mechanique at wmol dot com Zundapp KS601 drive shaft, U-joints, and pinions.
